Thin Section Open Bearings

Kenworth Bearing meet the most exacting specifications of the aerospace and defense, KD070CP0 KD075CP0 KD080CP0 KD090CP0 KD100CP0 KD110CP0 KD120CP0 KD140CP0 KD160CP0 KD180CP0 KD180XP0 KD200CP0 KD210CP0 KD250CP0 KD300CP0 KD040XP0 KD042XP0 KD045XP0 KD047XP0 KD050XP0 KD055XP0 KD060XP0 KD065XP0 KD070XP0 KD075XP0 KD080XP0 KD090XP0 KD100XP0 KD110XP0 KD120XP0 KD140XP0 KD160XP0 KD200XP0 KD210XP0 KD250XP0 KD300XP0 KF040AR0 KF042AR0 KF045AR0 KF047AR0 KF050AR0 KF055AR0 KF060AR0 KF065AR0 KF070AR0 KF075AR0 KF080AR0 KF090AR0 KF100AR0 KF100AR0 KF120AR0 KF140AR0 KF160AR0 KF180AR0 KF200AR0 KF250AR0 KF300AR0 KF350AR0 KF400AR0 KF040CP0 KF042CP0 KF045CP0 KF047CP0 KF050CP0 KF055CP0 KF060CP0 KF065CP0 KF070CP0 KF075CP0 KF080CP0 KF090CP0 KF100CP0 KF110CP0 KF120CP0 KF140CP0 KF160CP0 KF180CP0 KF200CP0 KF250CP0 KF300CP0 KF350CP0 KF400CP0 KF040XP0 KF042XP0 KF045XP0 KF047XP0 KF050XP0 KF055XP0 KF060XP0 KF065XP0 KF070XP0 KF075XP0 KF080XP0 KF090XP0 KF100XP0 KF110XP0 KF120XP0 KF140XP0 KF160XP0 KF180XP0 KF200XP0 KF250XP0 KF300XP0 KF350XP0 KF400XP0 KG040AR0 KG042AR0 KG045AR0 KG047AR0 KG050AR0 KG055AR0 KG060AR0 KG065AR0 KG070AR0 KG075AR0 KG080AR0 KG090AR0 KG100AR0

Category：

Thin Section Bearings

WhatsApp : +86-15095085275

Email : majunbearingfactory@gmail.com

Message

Product Description

Kenworth Bearing meet the most exacting specifications of the aerospace and defense, commercial aerospace, heavy equipment, industrial machinery, medical systems, mining, oil and gas, robotics, semiconductor, solar, and wind markets.

We supply Kaydon Reali-Slim® and Ultra-Slim® bearings which are available in a wide variety of materials, separator options, cross-sections, internal fit up choices, lubricants, corrosion resistance options and contact angles. With bore sizes from 3/4 inch to 40 inches (19 mm to 1 m), we provides the largest range of thin section bearings.

-Thin Section Open Bearings

-Thin Section Sealed Bearings

-Reali Slim Thin Section Metric Bearings

-Ultra Slim Extra Thin Section Bearings

The thin-walled bearing realizes the extremely thin bearing section, and also realizes the miniaturization and light weight of the product. The variety of products expands its scope of use.

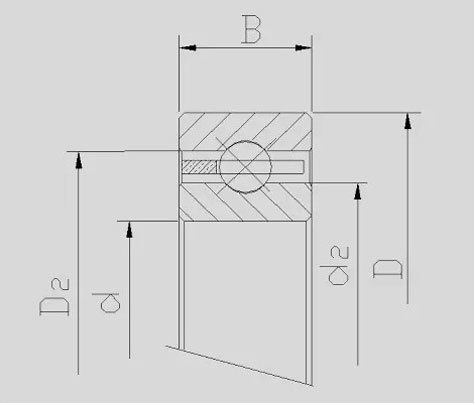

Bearing Number	BEARING TYPE	Bore Dia d	Outside Dia D	Width B	Seal Type	Cage Material
KD070CP0	Radial	7.000"	8.000"	0.5"	Open	Brass
KD075CP0	Radial	7.500"	8.500"	0.5"	Open	Brass
KD080CP0	Radial	8.000"	9.000"	0.5"	Open	Brass
KD090CP0	Radial	9.000"	10.000"	0.5"	Open	Brass
KD100CP0	Radial	10.000"	11.000"	0.5"	Open	Brass
KD110CP0	Radial	11.000"	12.000"	0.5"	Open	Brass
KD120CP0	Radial	12.000"	13.000"	0.5"	Open	Brass
KD140CP0	Radial	14.000"	15.000"	0.5"	Open	Brass
KD160CP0	Radial	16.000"	17.000"	0.5"	Open	Brass
KD180CP0	Radial	18.000"	19.000"	0.5"	Open	Brass
KD180XP0	Radial	18.000"	19.000"	0.5"	Open	Brass
KD200CP0	Radial	20.000"	21.000"	0.5"	Open	Brass
KD210CP0	Radial	21.000"	22.000"	0.5"	Open	Brass
KD250CP0	Radial	25.000"	26.000"	0.5"	Open	Brass
KD300CP0	Radial	30.000"	31.000"	0.5"	Open	Brass
KD040XP0	Four Point	4.000"	5.000"	0.5"	Open	Brass
KD042XP0	Four Point	4.250"	5.250"	0.5"	Open	Brass
KD045XP0	Four Point	4.500"	5.500"	0.5"	Open	Brass
KD047XP0	Four Point	4.750"	5.750"	0.5"	Open	Brass
KD050XP0	Four Point	5.000"	6.000"	0.5"	Open	Brass
KD055XP0	Four Point	5.500"	6.500"	0.5"	Open	Brass
KD060XP0	Four Point	6.000"	7.000"	0.5"	Open	Brass
KD065XP0	Four Point	6.500"	7.500"	0.5"	Open	Brass
KD070XP0	Four Point	7.000"	8.000"	0.5"	Open	Brass
KD075XP0	Four Point	7.500"	8.500"	0.5"	Open	Brass
KD080XP0	Four Point	8.000"	9.000"	0.5"	Open	Brass
KD090XP0	Four Point	9.000"	10.000"	0.5"	Open	Brass
KD100XP0	Four Point	10.000"	11.000"	0.5"	Open	Brass
KD110XP0	Four Point	11.000"	12.000"	0.5"	Open	Brass
KD120XP0	Four Point	12.000"	13.000"	0.5"	Open	Brass
KD140XP0	Four Point	14.000"	15.000"	0.5"	Open	Brass
KD160XP0	Four Point	16.000"	17.000"	0.5"	Open	Brass
KD200XP0	Four Point	20.000"	21.000"	0.5"	Open	Brass
KD210XP0	Four Point	21.000"	22.000"	0.5"	Open	Brass
KD250XP0	Four Point	25.000"	26.000"	0.5"	Open	Brass
KD300XP0	Four Point	30.000"	31.000"	0.5"	Open	Brass
KF040AR0	Angular	4.000"	5.500"	0.75"	Open	Brass
KF042AR0	Angular	4.250"	5.750"	0.75"	Open	Brass
KF045AR0	Angular	4.500"	6.000"	0.75"	Open	Brass
KF047AR0	Angular	4.750"	6.250"	0.75"	Open	Brass
KF050AR0	Angular	5.000"	6.500"	0.75"	Open	Brass
KF055AR0	Angular	5.500"	7.000"	0.75"	Open	Brass
KF060AR0	Angular	6.000"	7.500"	0.75"	Open	Brass
KF065AR0	Angular	6.500"	8.000"	0.75"	Open	Brass
KF070AR0	Angular	7.000"	8.500"	0.75"	Open	Brass
KF075AR0	Angular	7.500"	9.000"	0.75"	Open	Brass
KF080AR0	Angular	8.000"	9.500"	0.75"	Open	Brass
KF090AR0	Angular	9.000"	10.500"	0.75"	Open	Brass
KF100AR0	Angular	10.000"	11.500"	0.75"	Open	Brass
KF100AR0	Angular	11.000"	12.500"	0.75"	Open	Brass
KF120AR0	Angular	12.000"	13.500"	0.75"	Open	Brass
KF140AR0	Angular	14.000"	15.500"	0.75"	Open	Brass
KF160AR0	Angular	16.000"	17.500"	0.75"	Open	Brass
KF180AR0	Angular	18.000"	19.500"	0.75"	Open	Brass
KF200AR0	Angular	20.000"	21.500"	0.75"	Open	Brass
KF250AR0	Angular	25.000"	26.500"	0.75"	Open	Brass
KF300AR0	Angular	30.000"	31.500"	0.75"	Open	Brass
KF350AR0	Angular	35.000"	36.500"	0.75"	Open	Brass
KF400AR0	Angular	40.000"	41.500"	0.75"	Open	Brass
KF040CP0	Radial	4.000"	5.500"	0.75"	Open	Brass
KF042CP0	Radial	4.250"	5.750"	0.75"	Open	Brass
KF045CP0	Radial	4.500"	6.000"	0.75"	Open	Brass
KF047CP0	Radial	4.750"	6.250"	0.75"	Open	Brass
KF050CP0	Radial	5.000"	6.500"	0.75"	Open	Brass
KF055CP0	Radial	5.500"	7.000"	0.75"	Open	Brass
KF060CP0	Radial	6.000"	7.500"	0.75"	Open	Brass
KF065CP0	Radial	6.500"	8.000"	0.75"	Open	Brass
KF070CP0	Radial	7.000"	8.500"	0.75"	Open	Brass
KF075CP0	Radial	7.500"	9.000"	0.75"	Open	Brass
KF080CP0	Radial	8.000"	9.500"	0.75"	Open	Brass
KF090CP0	Radial	9.000"	10.500"	0.75"	Open	Brass
KF100CP0	Radial	10.000"	11.500"	0.75"	Open	Brass
KF110CP0	Radial	11.000"	12.500"	0.75"	Open	Brass
KF120CP0	Radial	12.000"	13.500"	0.75"	Open	Brass
KF140CP0	Radial	14.000"	15.500"	0.75"	Open	Brass
KF160CP0	Radial	16.000"	17.500"	0.75"	Open	Brass
KF180CP0	Radial	18.000"	19.500"	0.75"	Open	Brass
KF200CP0	Radial	20.000"	21.500"	0.75"	Open	Brass
KF250CP0	Radial	25.000"	26.500"	0.75"	Open	Brass
KF300CP0	Radial	30.000"	31.500"	0.75"	Open	Brass
KF350CP0	Radial	35.000"	36.500"	0.75"	Open	Brass
KF400CP0	Radial	40.000"	41.500"	0.75"	Open	Brass
KF040XP0	Four Point	4.000"	5.500"	0.75"	Open	Brass
KF042XP0	Four Point	4.250"	5.750"	0.75"	Open	Brass
KF045XP0	Four Point	4.500"	6.000"	0.75"	Open	Brass
KF047XP0	Four Point	4.750"	6.250"	0.75"	Open	Brass
KF050XP0	Four Point	5.000"	6.500"	0.75"	Open	Brass
KF055XP0	Four Point	5.500"	7.000"	0.75"	Open	Brass
KF060XP0	Four Point	6.000"	7.500"	0.75"	Open	Brass
KF065XP0	Four Point	6.500"	8.000"	0.75"	Open	Brass
KF070XP0	Four Point	7.000"	9.000"	0.3125"	Open	Brass
KF075XP0	Four Point	7.500"	9.000"	0.75"	Open	Brass
KF080XP0	Four Point	8.000"	9.500"	0.75"	Open	Brass
KF090XP0	Four Point	9.000"	10.500"	0.75"	Open	Brass
KF100XP0	Four Point	10.000"	11.500"	0.75"	Open	Brass
KF110XP0	Four Point	11.000"	12.500"	0.75"	Open	Brass
KF120XP0	Four Point	12.000"	13.500"	0.75"	Open	Brass
KF140XP0	Four Point	14.000"	15.500"	0.75"	Open	Brass
KF160XP0	Four Point	16.000"	17.500"	0.75"	Open	Brass
KF180XP0	Four Point	18.000"	19.500"	0.75"	Open	Brass
KF200XP0	Four Point	20.000"	21.500"	0.75"	Open	Brass
KF250XP0	Four Point	25.000"	26.500"	0.75"	Open	Brass
KF300XP0	Four Point	30.000"	31.500"	0.75"	Open	Brass
KF350XP0	Four Point	35.000"	36.500"	0.75"	Open	Brass
KF400XP0	Four Point	40.000"	41.500"	0.75"	Open	Brass
KG040AR0	Angular	4.000"	6.000"	1"	Open	Brass
KG042AR0	Angular	4.250"	6.250"	1"	Open	Brass
KG045AR0	Angular	4.500"	6.500"	1"	Open	Brass
KG047AR0	Angular	4.750"	6.750"	1"	Open	Brass
KG050AR0	Angular	5.000"	7.000"	1"	Open	Brass
KG055AR0	Angular	5.500"	7.500"	1"	Open	Brass
KG060AR0	Angular	6.000"	8.000"	1"	Open	Brass
KG065AR0	Angular	6.500"	8.500"	1"	Open	Brass
KG070AR0	Angular	7.000"	9.000"	1"	Open	Brass
KG075AR0	Angular	7.500"	9.500"	1"	Open	Brass
KG080AR0	Angular	8.000"	10.000"	1"	Open	Brass
KG090AR0	Angular	9.000"	11.000"	1"	Open	Brass
KG100AR0	Angular	10.000"	12.000"	1"	Open	Brass

Factory Appearance

Shandong Naxiang Bearing Manufacturing Co., Ltd. was established in 2010 and is a professional manufacturer of various types of bearings. The company is located in Linqing City, Shandong Province, covers an area of more than 7,000 square meters, and has modern production equipment and technologically advanced production processes.

Packing and shipping

The company mainly produces 0-9 general-purpose bearings and special bearings for machinery in various industries and non-standard bearings, including deep groove ball bearings, tapered roller bearings, outer spherical bearings, etc. Our products are widely used in mining machinery, precision machine tools, textile machinery, papermaking equipment, agricultural machinery, automobiles, motorcycles, power tools, home appliances and other fields, and are deeply trusted and well received by customers.
